== Соединения Zr (òîì 28,29) ==
-
-



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O



O


-

1. T.28, c.0356

alfa-Cs2Zr{PO4}2

 Rombik

 GRUPA 32,55

356-1

 a=19.41 b=16.383 c=10.5596

 da= .01 db= .003 dc= .0003

 v=3358



 Monoklin

 Grupa 4,11

365-2

 a= 17.1621 b= 15.880 c= 17.340 beta= 93.84

 da=.0006 db=.002 dc= .006 dbeta=.02

 V= 4715



2. T.28, c.0545

PbZr{BO3}2

 Rombik

 GRUPA 61

545-1

 a=16.848 b= 9.809 c=12.893

 da= .003 db= .004 dc= .003

 v=2131



 Triklin

545-2

 A= 12.4472 DA= .0002

 B= 12.8227 DB= .0001

 C= 12.09859 DC= .00003

 GAMMA=102.9914 DGAMMA= .0008

 BETA = 70.7535 DBETA = .0005

 ALPHA=118.4392 DALPHA= .0007

 V= 1598



3. T.28, c.0569

alfa-LiHZr{PO4}2

 Rombik

 GRUPA 16,25,47

569-1

 a=23.25 b=21.71 c= 9.155

 da= .01 db= .01 dc= .003

 v=4621



 Monoklin

 Grupa 3

569-2

 a= 15.563 b= 13.200 c= 22.049 beta= 73.98

 da=.006 db=.002 dc= .001 dbeta=.08

 V= 4354



4. T.28, c.0714

Ni2ZrF8*12H2O

 Monoklin

 grupa 3

714

 a= 23.746 b= 15.3840 c= 10.197 beta= 78.492

 da=.001 db=.0001 dc=.001 dbeta= .001

 V=3650



5. T.28, c.0759

alfa-KHZr{PO4}2

 GRUPA 33,62

759

 a=17.821 b=13.853 c= 6.575

 da= .002 db= .008 dc= .001

 v=1623



6. T.28, c.0986

alfa-Rb2Zr{PO4}2

 Rombik

 GRUPA 29,57

986-1

 a=20.63 b= 9.2352 c=26.217

 da= .01 db= .0007 dc= .006

 v=4996



 Monoklin

 Grupa 3

986-2

 a= 13.193 b= 14.271 c= 15.072 beta= 101.593

 da= .008 db=.008 dc=.003 dbeta= .008

 V= 2780



7. T.28, c.1098

alfa-NaHZr{PO4}2

 Monoklin

 Grupa 4,11

1098

 a= 23.072 b= 12.993 c= 9.7971 beta= 95.588

 da=.006 db=.003 dc=.0001 dbeta=.007

 V= 2923



8. T.28, c.1147

Cs2ZrSi2O7

 Monoklin

1147-1

 a=23.317 b= 3.7058 c=11.3211 beta= 103.531

 da= .002 db= .0001 dc=.001 dbeta=.005

 V= 951



 Triklin

1147-2

 A= 7.451 DA= .002

 B= 7.29062 DB= .00325

 C= 3.683 DC= .002

 GAMMA= 83.469 DGAMMA= .007

 BETA = 96.40 DBETA = .01

 ALPHA= 76.68 DALPHA= .04

 V= 191



9. T.28, c.1170

Cs2ZrSiO3O9

 Monoklin

 Grupa 3

1170-1

 a= 14.603 b= 10.973 c= 7.639 beta= 80.41

 da= .003 db=.001 dc= .001 dbeta=.01

 V= 1207



Triklin

1170-2

 A= 8.7822 DA= .0002

 B= 7.1636 DB= .0004

 C= 15.600 DC= .002

 GAMMA= 97.326 DGAMMA= .005

 BETA =102.727 DBETA = .007

 ALPHA= 89.789 DALPHA= .006

 V= 949



10. T.28, c.1187

Cs4Zr2Si5O16

 Monoklin

 grupa 3

1187-1

 a= 16.221 b= 10.527 c= 14.879 beta= 102.464

 da= .001 db= .001 dc= .001 dgam= .002

 V=2481



 Triklin

1187-2

 A= 10.660 DA= .002

 B= 11.335 DB= .001

 C= 6.0976 DC= .0008

 GAMMA= 67.151 DGAMMA= .006

 BETA =100.29 DBETA = .01

 ALPHA= 80.874 DALPHA= .006

 V= 647



11. T.28, c.1199

Na4Zr2Si5O16

Triklin

1199

 A= 7.9898 DA= .0007

 B= 9.681 DB= .005

 C= 9.8431 DC= .0001

 GAMMA= 69.96 DGAMMA= .01

 BETA = 98.49 DBETA = .02

 ALPHA= 74.274 DALPHA= .007

 V= 664

12. T.28, c.1200

Na14Zr2Si10O31

 Rombik

 GRUPA 16

1200-1

 a=14.542 b=11.43 c=12.8368

 da= .005 db= .01 dc= .0008

 v=2134



Triklin

1200-2

 A= 15.4703 DA= .0005

 B= 9.976 DB= .001

 C= 9.4565 DC= .0008

 GAMMA= 97.54 DGAMMA= .01

 BETA = 85.668 DBETA = .008

 ALPHA= 65.483 DALPHA= .001

 V= 1303



13. T.28, c.1273

alfa-SrZr{PO4}2

GRUPA 19

1273

 a=10.346 b=16.239 c=12.84

 da= .002 db= .001 dc= .01

 v=2158



14. T.28, c.1354

GaZr{PO4}3Cl16

Triklin

1354

 A= 12.099 DA= .001

 B= 13.0851 DB= .0008

 C= 8.8199 DC= .0008

 GAMMA=108.780 DGAMMA= .002

 BETA = 94.96 DBETA = .01

 ALPHA= 98.864 DALPHA= .003

 V= 1293



15. T.28, c.1493

ZnZrF6

 Rombik

 GRUPA 30,53

1493-1

 a=12.426 b=13.000 c= 8.566

 da= .002 db= .003 dc= .004

 v=1384



Triklin

1493-2

 A= 12.842 DA= .006

 B= 4.8996 DB= .0005

 C= 12.497 DC= .001

 GAMMA= 80.28 DGAMMA= .01

 BETA = 64.53 DBETA = .04

 ALPHA= 84.19 DALPHA= .01

 V = 699



16. T.28, c.1494

C8H12O8Zr

Triklin

1494

 A= 14.249 DA= .005

 B= 14.2934 DB= .0009

 C= 11.95448 DC= .00003

 GAMMA=103.66 DGAMMA= .01

 BETA = 80.022 DBETA = .002

 ALPHA= 98.72 DALPHA= .02

 V= 2314



17. T.28, c.1496

Zr{PO3}4

Triklin

1496

 A= 17.80692 DA= .00007

 B= 17.4811 DB= .0001

 C= 8.0117 DC= .0008

 GAMMA=108.7120 DGAMMA= .0005

 BETA = 92.588 DBETA = .001

 ALPHA= 77.276 DALPHA= .001

 V= 2303



18 T.28, c.1497

Zr{PO3}4

Monoklin

Grupa 3

1497-1

 a= 21.003 b= 4.294 c= 20.334 beta=107.32

 da= .002 db=.002 dc=.002 dbeta=.01

 V= 1751



 Triklin

1497-2

 A= 8.643 DA= .001

 B= 7.5522 DB= .0009

 C= 17.29980 DC= .00009

 GAMMA=104.956 DGAMMA= .002

 BETA = 82.67 DBETA = .01

 ALPHA= 91.258 DALPHA= .007

 V= 1082



19. T.28, c.1498

Zr3{PO4}4

 Rombik

 GRUPA 16

1498-1

 a=23.5208 b=16.337 c= 5.912

 da= .0003 db= .006 dc= .002

 v=2272



 Triklin

1498-2

 A= 18.04 DA= .03

 B= 7.8015 DB= .0002

 C= 5.0735 DC= .0004

 GAMMA= 90.10 DGAMMA= .01

 BETA = 82.68 DBETA = .04

 ALPHA= 80.20 DALPHA= .02

 V = 698



20. T.28, c.1876

C22H40N8S6Zr

 Monoklin

 Grupa 3

1876-1

 a= 11.883 b= 14.741 c= 15.883 beta= 109.29

 da=.003 db=.004 dc= .005 dbeta=.09

 V= 2626



 Triklin

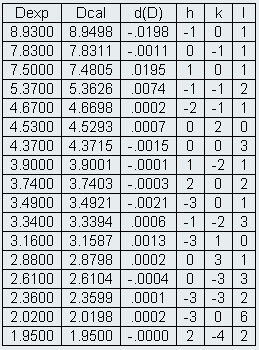

1876-2

 A= 10.5439 DA= .0002

 B= 9.1333 DB= .0003

 C= 13.425 DC= .002

 GAMMA= 85.476 DGAMMA= .006

 BETA =100.94 DBETA = .01

 ALPHA= 96.524 DALPHA= .008

 V= 1259



21. T.28, c.2000

C13NZrCl4

 Rombik

 GRUPA 50

2000

 a= 6.1339 b=12.447 c= 6.091

 da= .0002 db= .003 dc= .001

 v= 465



22. T.29, c.1113

Rb2ZrSO4F4

 Monoklin

 Grupa 4,11

1113

 a=21.51 b=14.282 c= 7.6143 beta= 94.23

 da=.03 db= .003 dc= .0009 dbeta=.05

 V= 2332





-

-
